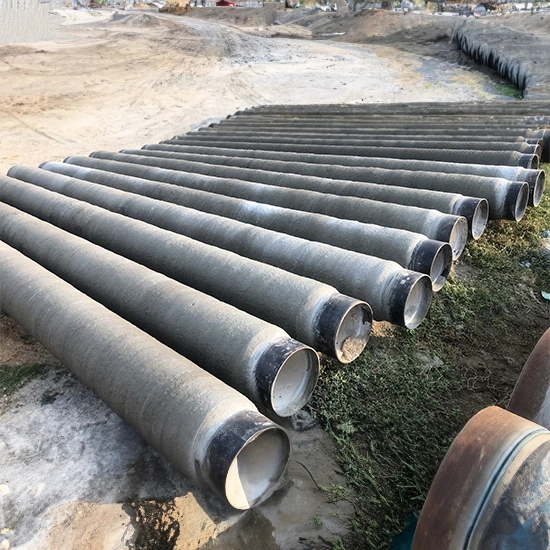

Manufacturer, Supplier & Exporter of Cement Mortar Coated Pipes (Internal & External)

Cement Mortar Coated Pipes (Internal & External) are widely recognized for their superior corrosion resistance, strength, and long-lasting performance in water, sewage, and industrial pipeline applications. These pipes feature a layer of cement mortar coating applied both inside and outside the pipe surface. The internal cement mortar lining ensures a smooth flow of fluids and prevents corrosion, while the external coating offers protection against soil corrosion and mechanical damage. This dual protection system significantly enhances the pipe’s life expectancy and performance under harsh environmental conditions, making them a preferred choice for infrastructure and utility projects across India...

Riddhi Siddhi Impex, a reputed name in the steel pipe industry, is a leading manufacturer, exporter, and domestic supplier of Cement Mortar Coated Pipes (Internal & External) in India. With years of experience and technical expertise, the company manufactures these coated pipes following national and international standards such as IS, ASTM, and AWWA. Riddhi Siddhi Impex focuses on precision coating technology to ensure uniform application and excellent adhesion of the cement mortar. The company’s modern production facility is equipped with advanced machinery for cleaning, coating, curing, and testing, ensuring consistent product quality and reliability for every project..

The manufacturing process of Cement Mortar Coated Pipes by Riddhi Siddhi Impex involves several meticulous stages. The steel or ductile iron pipes are first thoroughly cleaned to remove contaminants, rust, or scale. The internal and external surfaces are then coated with a specially prepared mixture of cement, sand, and water in controlled proportions. The coating is applied centrifugally or by spray methods to achieve uniform thickness and bonding strength. Once applied, the coating undergoes curing to achieve optimum hardness and durability. The resulting pipes provide robust resistance to abrasion, corrosion, and chemical attack, making them suitable for transporting potable water, wastewater, and industrial fluids..

Cement Mortar Coated Pipes (Internal & External) from Riddhi Siddhi Impex offer numerous advantages. They provide excellent resistance to electrochemical corrosion, which commonly affects steel pipelines buried underground or submerged in water. The smooth interior surface reduces friction losses, ensuring efficient fluid flow and energy savings in pumping systems. The external coating provides an additional layer of protection, especially in saline or chemically aggressive soils, making these pipes ideal for coastal, industrial, and municipal projects. Moreover, they are environmentally friendly as the coating materials used—cement and sand—are natural and non-toxic..

As a trusted Cement Mortar Coated Pipe supplier in India, Riddhi Siddhi Impex has established a robust domestic distribution network covering all major Indian cities, including Mumbai, Delhi, Bengaluru (Bangalore), Hyderabad, Chennai, Kolkata, Pune, Ahmedabad, Surat, Vadodara, Rajkot, Nagpur, Indore, Bhopal, Jaipur, Kanpur, Lucknow, Agra, Varanasi, Amritsar, Chandigarh, Mysuru (Mysore), Udaipur, Jodhpur, Visakhapatnam, Coimbatore, Madurai, Kochi, Thiruvananthapuram, Mangalore, Nashik, Kolhapur, Chandrapur, Akola, Vilayat, Somnath, Dahej, Narmada, Ankleshwar, Navsari, Valsad, and Rajpipla. With an efficient logistics and supply chain system, the company ensures prompt delivery and project support to customers across the country..

Cement Mortar Coated Pipes (Internal & External)

Specification

Product Name	Cement Mortar Coated Pipes (Internal & External)
Manufacturer	Riddhi Siddhi Impex
Base Material	Carbon Steel / Mild Steel / Ductile Iron
Coating Type	Internal and External Cement Mortar Coating
Standard	IS 3589 / AWWA C205 / ASTM A53 / API 5L
Size Range	100 mm NB to 2600 mm NB
Wall Thickness	Sch 20 to Sch 160 / Custom
Length	Single Random, Double Random, or Custom Cut Lengths
Coating Thickness	3 mm to 25 mm (Internal & External)
Pipe Ends	Plain End (PE), Beveled End (BE), or Flanged
Form	Seamless, ERW, LSAW, or Spiral Welded (SAW)
Applications	Water Supply, Irrigation, Sewage, Cooling Water, Desalination, and Industrial Pipelines

Chemical Composition (Base Carbon Steel)

Element	Content (%)
Carbon (C)	0.23 Max
Manganese (Mn)	0.30 – 1.06
Phosphorus (P)	0.05 Max
Sulfur (S)	0.045 Max
Silicon (Si)	0.10 – 0.35
Copper (Cu)	0.40 Max
Nickel (Ni)	0.40 Max
Chromium (Cr)	0.40 Max

Mechanical Properties

Property	Value
Tensile Strength	≥ 415 MPa
Yield Strength (0.2% offset)	≥ 240 MPa
Elongation	≥ 20%
Hardness	≤ 95 HRB
Impact Resistance	Excellent (Due to Cement Mortar Coating)
Coating Adhesion	Strong Adhesion per AWWA C205

Dimension Chart (Nominal)

Nominal Pipe Size (NB)	Outside Diameter (mm)	Coating Thickness (mm)	Length
100	114.3	3 – 5	Up to 12 m
200	219.1	5 – 8	Up to 12 m
300	323.9	6 – 10	Up to 12 m
500	508.0	8 – 12	Up to 12 m
800	813.0	10 – 15	Up to 12 m
1000	1016.0	12 – 20	Up to 12 m
1600	1626.0	15 – 25	Up to 12 m

Equivalent Grades

Standard	Grade
ASTM	A106 Grade B / A53 Grade B
API	5L Grade B / X42 / X52
EN	EN 10224 / EN 10217
DIN	St 37.0 / St 52.3
IS	IS 3589 / IS 1239

Equivalent Standards

Standard	Description
AWWA C205	Standard for Cement–Mortar Protective Lining and Coating for Steel Water Pipe
IS 3589	Steel Pipes for Water and Sewage
ASTM A53 / A106	Standard for Carbon Steel Pipe for High-Temperature and Pressure Service
API 5L	Specification for Line Pipe

Other Types of Coated and Lined Steel Pipes

Type	Description
Epoxy Coated Pipes	Internal epoxy coating for corrosion resistance and smoother fluid flow
3LPE Coated Pipes	Three-layer polyethylene coating for enhanced external protection
FBE Coated Pipes	Fusion Bonded Epoxy coating for chemical and moisture protection
Bitumen Coated Pipes	External bitumen coating for underground and marine applications

Riddhi Siddhi Impex’s Cement Mortar Coated Pipes (Internal & External) are used in a wide range of applications such as water supply networks, irrigation pipelines, cooling water systems, desalination projects, industrial water treatment plants, and sewerage lines. These pipes are also suitable for power plants, petrochemical facilities, and coastal protection systems. Their durability, low maintenance requirements, and resistance to both internal and external corrosion make them an ideal choice for long-term infrastructure development in India’s public and private sectors.

Frequently Asked Questions (FAQs)

Q1: What are Cement Mortar Coated Pipes used for?

A1: These pipes are used for water transmission, sewage lines, irrigation systems, cooling water projects, and industrial fluid transport where both internal and external corrosion protection is needed.

Q2: What is the advantage of internal and external cement mortar coating?

A2: The internal coating prevents corrosion and improves hydraulic efficiency, while the external coating protects against soil and environmental corrosion, extending the pipe's service life.

Q3: Does Riddhi Siddhi Impex supply Cement Mortar Coated Pipes across India?

A3: Yes, Riddhi Siddhi Impex supplies Cement Mortar Coated Pipes to major Indian cities including Mumbai, Delhi, Bengaluru, Hyderabad, Chennai, Kolkata, Pune, Ahmedabad, Surat, Vadodara, Jaipur, Indore, and many more.

Q4: Can custom coating thickness and sizes be provided?

A4: Absolutely. We provide customized coating thicknesses, pipe sizes, and specifications according to project and client requirements following IS and AWWA standards.
