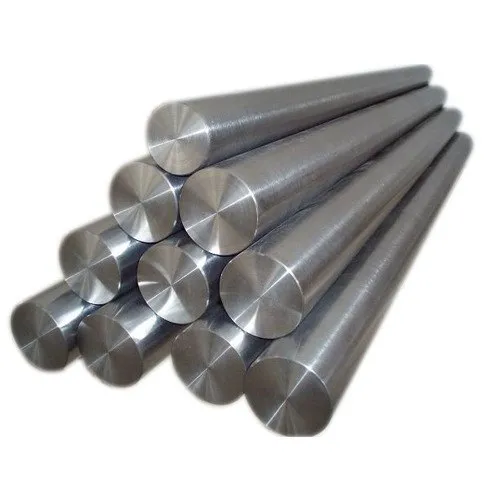

Manufacturer, Supplier & Exporter of Titanium Grade 5 Round Bar (Ti-6Al-4V)

Titanium Grade 5 (Ti-6Al-4V) is the most widely used titanium alloy in industry — a high-strength, lightweight alloy combining about 6% aluminum and 4% vanadium with the balance titanium. Because it delivers a very favorable strength-to-weight ratio, excellent corrosion resistance, and good heat-treatment response, Grade 5 round bar is the default choice where designers need better mechanical performance than commercially pure titanium can offer, while still saving weight versus steels and superalloys...

Chemically, Ti-6Al-4V typically contains ~6.0% Al, ~4.0% V, with trace oxygen, iron and other elements kept low to meet specified limits. That controlled chemistry produces an α+β microstructure that can be heat treated (solution treat + ageing) to tailor strength and toughness. Manufacturers and suppliers usually provide chemical composition reports and mill test certificates (MTC) confirming conformity to standards such as ASTM B348 / AMS 4928 / EN 10204 depending on customer requirements..

Mechanically, Grade 5 round bar offers tensile strengths commonly in the range of ~880–950 MPa (solution treated and aged condition) and yield strengths near ~830 MPa for many product forms; elongation and impact toughness depend on condition and processing. These bars are prized in applications requiring fatigue resistance, high static strength and reliable performance from cryogenic through moderately elevated temperatures (service up to ~400°C with reduced properties)...

Manufacturing and supply — companies like Riddhi Siddhi Impex (presented here as the named supplier) typically source Grade 5 titanium from acid-and-vacuum processed mills or reputable stockists, then provide round bars in cold-finished, turned, or peened conditions. Typical diameters range from small machine bars (6 mm–50 mm) up to large forgings/round bars (100 mm and above) depending on inventory. Suppliers commonly offer additional services such as sawing, cutting-to-length, straightening, and packing for export or domestic delivery..

Surface finish and machinability: Ti-6Al-4V is less machinable than steels — it work-hardens and generates heat — so suppliers often deliver bars with a turned or bright finish appropriate for machining and recommend carbide tooling, rigid setups and flood cooling. For clients that need near-net shapes, some suppliers provide forged or annealed bars to simplify downstream forming or machining operations..

PP Coated Carbon Steel Pipes

Specification

Product Name	PP Coated Carbon Steel Pipes
Manufacturer	Riddhi Siddhi Impex
Base Material	Carbon Steel (ASTM A106 / A53 / API 5L)
Coating Material	Polypropylene (PP) – Single or 3-Layer (3LPP)
Standard	ISO 21809-1 / DIN 30678 / ASTM / API
Size Range	1/2” NB to 48” NB
Wall Thickness	Sch 20 to Sch 160 / XXS
Length	Single Random, Double Random, or Cut Lengths
Coating Thickness	1.8 mm to 4.5 mm (Customizable)
Pipe Ends	Plain End (PE), Beveled End (BE), or Threaded
Form	Seamless, Welded, ERW, or LSAW
Applications	Oil & Gas Pipelines, Water Supply, Chemical Transport, Marine Projects

Chemical Composition (Base Carbon Steel)

Element	Content (%)
Carbon (C)	0.23 Max
Manganese (Mn)	0.30 – 1.06
Phosphorus (P)	0.05 Max
Sulfur (S)	0.045 Max
Silicon (Si)	0.10 – 0.35
Copper (Cu)	0.40 Max
Nickel (Ni)	0.40 Max
Chromium (Cr)	0.40 Max

Mechanical Properties

Property	Value
Tensile Strength	≥ 415 MPa
Yield Strength (0.2% offset)	≥ 240 MPa
Elongation	≥ 20%
Hardness	≤ 95 HRB
Impact Resistance	Excellent (Due to PP Coating)
Coating Adhesion	Strong Adhesion per ISO 21809-1

Dimension Chart (Nominal)

Nominal Pipe Size (NB)	Outside Diameter (mm)	Wall Thickness (mm)	Length
1/2"	21.3	2.77	Up to 12 m
1"	33.4	3.38	Up to 12 m
2"	60.3	3.91	Up to 12 m
4"	114.3	6.02	Up to 12 m
6"	168.3	7.11	Up to 12 m
10"	273.1	9.27	Up to 12 m
16"	406.4	12.70	Up to 12 m

Equivalent Grades

Standard	Grade
ASTM	A106 Grade B / A53 Grade B
API	5L Grade B / X42 / X52
EN	EN 10216 / EN 10224
DIN	St 37.2 / St 52.3
BS	3601 / 3602

Equivalent Standards

Standard	Description
ASTM A106 / A53	Specification for Carbon Steel Pipe for High-Temperature and Pressure Service
API 5L	Specification for Line Pipe
ISO 21809-1	External Polypropylene Coatings for Buried or Submerged Pipelines
DIN 30678	3-Layer Polypropylene Coating for Steel Pipes

Other Types of Coated Steel Pipes

Type	Description
3LPE Coated Pipes	Three-layer polyethylene coated pipes for enhanced corrosion protection
FBE Coated Pipes	Fusion Bonded Epoxy coated pipes for superior adhesion and corrosion resistance
Internal Epoxy Coated Pipes	Epoxy-coated inner surface for smooth flow and lower friction loss
PE Coated Pipes	Polyethylene-coated carbon steel pipes for underground applications

Availability across India: Riddhi Siddhi Impex and similar domestic distributors commonly service the full list of Indian industrial and manufacturing hubs you provided — Mumbai, Delhi, Bengaluru (Bangalore), Hyderabad, Chennai, Kolkata, Pune, Ahmedabad, Surat, Vadodara, Rajkot, Nagpur, Indore, Bhopal, Jaipur, Kanpur, Lucknow, Agra, Varanasi, Amritsar, Chandigarh, Mysuru (Mysore), Udaipur, Jodhpur, Visakhapatnam, Coimbatore, Madurai, Kochi, Thiruvananthapuram, Mangalore, Nashik, Kolhapur, Chandrapur, Akola, Vilayat, Somnath, Dahej, Narmada, Ankleshwar, Navsari, Valsad, Rajpipla and others. Reputable suppliers maintain regional warehouses or tie up with logistics partners to provide fast local delivery, cut-to-size service, and documentation for regulatory or export needs..

Frequently Asked Questions (FAQs)

Q1: What are the common applications of Titanium Grade 5 Round Bar (Ti-6Al-4V)?

A1: Titanium Grade 5 Round Bars are widely used in aerospace components, marine hardware, medical implants, chemical processing equipment, and high-performance automotive parts.

Q2: Do you provide custom sizes and lengths for Titanium Grade 5 Round Bars?

A2: Yes, we offer customized lengths, diameters, and machining options based on client requirements for various industrial applications.

Q3: Is Titanium Grade 5 (Ti-6Al-4V) corrosion-resistant?

A3: Yes, Titanium Grade 5 offers excellent corrosion resistance in seawater, chloride-rich environments, oxidizing conditions, and a wide range of industrial chemicals.

Q4: What finishes are available for Titanium Grade 5 Round Bar?

A4: The available finishes include bright finish, black finish, pickled finish, polished finish, and custom surface treatments upon request.
