Manufacturer, Supplier & Exporter of Tri-Clover Control Valve (Pneumatic / Electric Actuated)

The Tri-Clover Control Valve (Pneumatic / Electric Actuated) is a precision-engineered sanitary valve designed for hygienic flow control in process industries. It features a Tri-Clover (Tri-Clamp) connection for easy assembly and disassembly, making it ideal for clean-in-place (CIP) and sterilize-in-place (SIP) operations. These valves are widely used in industries such as pharmaceuticals, food and beverage, dairy, cosmetics, and biotechnology, where maintaining product purity and process accuracy is crucial..

Riddhi Siddhi Impex, a trusted name in the field of sanitary flow control systems, is a leading manufacturer and domestic supplier of Tri-Clover Control Valves in India. The company offers both pneumatic and electric actuated control valves that allow precise modulation of flow, pressure, and temperature in automated process systems. Their valves are made from high-grade stainless steel (SS 304 / SS 316L) and come with FDA-approved seals and internal finishes conforming to ASME BPE and 3A standards.

These Tri-Clover Actuated Control Valves are available in different body configurations (2-way and 3-way), and their actuators are designed for smooth, responsive performance. Pneumatic models can be configured as air-to-open or air-to-close, while electric versions offer feedback control, manual override, and compatibility with PLC systems. The valves can be integrated with positioners, solenoid valves, and limit switches, making them suitable for automated process plants.

In India, Riddhi Siddhi Impex supplies these valves across major industrial cities such as Mumbai, Delhi, Bengaluru, Hyderabad, Chennai, Kolkata, Pune, Ahmedabad, Surat, Vadodara, and Rajkot. These hubs house a wide range of industries requiring hygienic and automated fluid handling solutions. Their control valves are particularly appreciated in cleanroom environments, sterile fluid systems, and automated filling and batching lines..

The company has also expanded its distribution to key Tier-2 and Tier-3 cities such as Nagpur, Indore, Bhopal, Jaipur, Kanpur, Lucknow, Agra, Varanasi, Amritsar, and Chandigarh, where pharmaceutical and food industries are rapidly growing. By offering quality valves with reliable delivery and local support, Riddhi Siddhi Impex plays a crucial role in enabling advanced process automation in emerging markets.

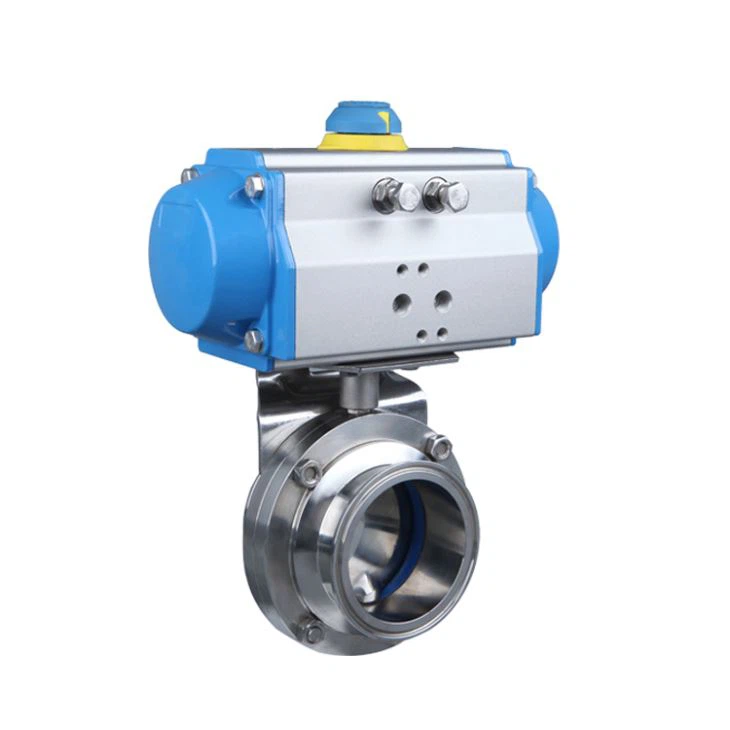

Tri-Clover Control Valve (Pneumatic / Electric Actuated)

1. Specifications

Product Type	Tri-Clover Sanitary Control Valve
Connection Type	Tri-Clover / Tri-Clamp
Material	SS 304, SS 316, SS 316L
Actuation Type	Pneumatic / Electric
Size Range	½" to 4"
Operating Pressure	Up to 10 bar
Temperature Range	-10°C to 150°C
Diaphragm/Seal Material	EPDM, PTFE, Silicone (FDA Compliant)
Surface Finish	Ra ≤ 0.4 µm, electropolished
Standards	ASME BPE, 3A, ISO, FDA

2. Chemical Composition (SS 316L)

Element	Percentage (%)
Carbon (C)	≤ 0.03
Chromium (Cr)	16.0 – 18.0
Nickel (Ni)	10.0 – 14.0
Molybdenum (Mo)	2.0 – 3.0
Silicon (Si)	≤ 1.00
Manganese (Mn)	≤ 2.00
Phosphorus (P)	≤ 0.045
Sulfur (S)	≤ 0.030

3. Mechanical Properties

Tensile Strength	≥ 485 MPa
Yield Strength	≥ 170 MPa
Elongation	≥ 40%
Hardness	≤ 217 HB
Density	7.98 g/cm³

4. Dimension Chart (Sample)

Size (Inch)	Clamp OD (mm)	Body Length (mm)	Height (mm)
½"	25.4	85	110
1"	50.5	100	130
1.5"	50.5	115	150
2"	64	130	170
3"	91	160	200
4"	119	190	230

5. Equivalent Grades

Standard	Grade
ASTM	A351 CF8M / A182 F316L
DIN	1.4404
EN	X2CrNiMo17-12-2
JIS	SUS 316L

6. Equivalent Standards

ASME BPE	Bioprocessing Equipment
3A Sanitary	Dairy & Food Processing
ISO 1127	Stainless Steel Tubes for Pharma
DIN 11866	Sanitary Tube Standards

7. Other Types of Tri-Clover Valves

Valve Type	Description	Application
On-Off Pneumatic Valve	Quick shut/open operation	Beverage & dairy automation
Digital Electric Control Valve	Precise flow control with feedback	Pharmaceutical & biotech
3-Way Control Valve	Diverts or mixes fluid flow	Blending applications
Manual Diaphragm Valve	Hand-operated, cost-effective	Lab & pilot plants
Zero Dead Leg Valve	No hold-up volume	Sterile & high-purity systems

In southern India, Riddhi Siddhi Impex supplies Tri-Clover Control Valves to cities like Mysuru, Coimbatore, Madurai, Kochi, Thiruvananthapuram, Mangalore, and Visakhapatnam, catering to dairy plants, breweries, biotech research units, and ayurvedic production units. Their valves meet strict hygiene standards and are compatible with steam and chemical cleaning.

8. Frequently Asked Questions (FAQs)

Q1: What is the use of a Tri-Clover Control Valve?

A1: It provides precise control of flow, pressure, or temperature in hygienic process systems using pneumatic or electric actuators.

Q2: What industries commonly use these valves?

A2: Pharmaceuticals, food & beverage, cosmetics, dairy, and biotech industries prefer these valves for sanitary operations and automated flow control.

Q3: Are the valves customizable?

A3: Yes, we offer custom options for actuator type, valve size, diaphragm material, position feedback, and surface finish.

Q4: Do you supply in smaller industrial cities in India?

A4: Yes, we supply across India including Mumbai, Chennai, Pune, Surat, Vadodara, Dahej, Coimbatore, Udaipur, Kolhapur, and more.
