Manufacturer, Supplier & Exporter of Tri-Clover Divert Valve (2-Way / 3-Way)

The Tri‑Clover Divert Valve (also called sanitary diverting valve or “2‑way / 3‑way divert valve”) is a specialized sanitary valve used to direct process flow between two or more pipelines in hygienic systems (e.g. food, beverage, dairy, biotech, pharmaceutical). Unlike a simple shut‑off valve, a divert valve allows either routing the fluid to one of two outlets (3‑way) or switching between two paths (2‑way). In processes such as filling lines, sampling loops, CIP (clean-in-place) bypasses, this valve plays a critical role in directing fluid safely, without contamination, while maintaining sanitary integrity.

As a manufacturer, Riddhi Siddhi Impex would build these divert valves with the same rigor and hygienic design as their other Tri‑Clover valves. The wetted parts (body, plug, sleeves) would typically use stainless steel grades such as SS 304, SS 316 or SS 316L, polished internally to food-grade finishes (e.g. Ra ≤ 0.4 µm). The internal divert mechanism (plug, seal surfaces) is designed to minimize dead legs and ensure full drainage. Seats and seals would be from FDA‑approved elastomers (EPDM, FKM, PTFE, silicone) depending on the process fluid. The valve actuation may be manual, pneumatic, or electric for integration into automation systems.

Riddhi Siddhi Impex would also ensure rigorous quality controls: material traceability certificates, dimensional inspection, leak testing (helium or bubble), surface finish checks, and possible third‑party inspection if demanded by clients. Because divert valves are more complex than simple on/off valves (having internal diverter passages, seals, multiple ports), careful machining, alignment, and assembly tolerances are critical to reliable operation and zero cross-contamination.

In its role as a domestic supplier, Riddhi Siddhi Impex would serve major industrial and process hubs across India. In Mumbai, Delhi, Bengaluru, Hyderabad, Chennai, Pune, Ahmedabad, Kolkata, many food processing, pharmaceutical and beverage plants would source their divert valves from such a supplier. The company would maintain regional warehouses, branches, or authorized distributors in such metro areas to ensure timely delivery, local support, and quick spare parts fulfillment.

From a standards and equivalence standpoint, these divert valves would be designed consistent with sanitary valve standards such as ASME BPE, 3A, ISO, DIN sanitary series. Equivalent international models (e.g. Alfa Laval Tri‑Clover divert valves) are often referenced by clients. The materials used would align with ASTM, DIN, JIS grades (e.g. ASTM A351 CF8M for 316 stainless steel). The internal design would aim to minimize turbulence, pressure drop, and dead legs, ensuring process hygiene and low maintenance.

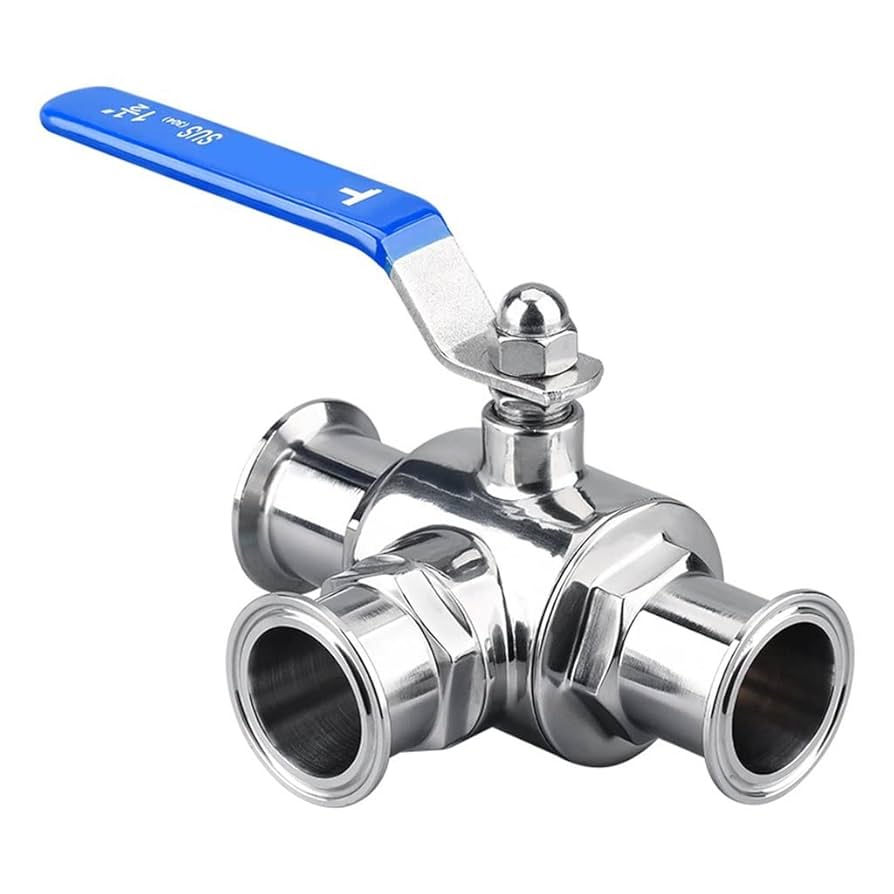

Tri-Clover Divert Valve (2-Way / 3-Way)

Specifications

Parameter	Details
Valve Type	Tri-Clover Divert Valve (2-Way / 3-Way)
Material	Stainless Steel 304 / 316 / 316L
Size Range	1" to 6"
End Connection	Tri-Clover Clamp / Tri-Clamp
Operation	Manual / Pneumatic / Electric
Application	Food, Beverage, Dairy, Pharmaceutical, Biotech
Working Pressure	Up to 10 bar (145 psi)
Working Temperature	-10°C to 140°C

Chemical Composition (Stainless Steel 316L)

Element	Composition (%)
Carbon (C)	0.03 max
Chromium (Cr)	16.0 - 18.0
Nickel (Ni)	10.0 - 14.0
Molybdenum (Mo)	2.0 - 3.0
Manganese (Mn)	2.0 max
Silicon (Si)	1.0 max
Phosphorus (P)	0.045 max
Sulfur (S)	0.03 max

Mechanical Properties

Property	Value
Tensile Strength	515 MPa min
Yield Strength	205 MPa min
Elongation	40% min
Hardness	HRB 95 max

Dimension Chart

Valve Size (Inch)	Outer Diameter (mm)	Height (mm)	Weight (Kg)
1"	50.5	180	1.5
2"	64.0	220	2.8
3"	91.0	265	4.2
4"	119.0	310	6.0
6"	168.3	370	10.5

Equivalent Grades

Standard	Grade
ASTM	A351 CF8M
DIN	1.4408
JIS	SCS14

Equivalent Standards

Standard	Description
ASME BPE	Bioprocessing Equipment Standard
3A Sanitary Standards	Sanitary Equipment Compliance
DIN 11850	German Standard for Sanitary Tubing
ISO 1127	International Stainless Steel Tubing Standard

Other Types of Valves Offered

Valve Type	Typical Application
Tri-Clover Butterfly Valve	Flow Regulation and Shutoff
Sanitary Ball Valve	Food & Beverage, Pharmaceutical Industry
Diaphragm Valve	Corrosive and Slurry Fluids
Non-Return Valve (NRV)	Backflow Prevention

To meet diverse application needs, Riddhi Siddhi Impex would offer variants of the divert valve: 2‑way (simple on/off diversion) and 3‑way (L‑port, T‑port) configurations. Actuation options would include manual lever / handwheel, pneumatic cylinder (single or double acting), and electric motor operator (with position feedback). They might also provide special divert valves with throttling capability (i.e. partial flow control) or with sanitary seals that withstand high temperatures or aggressive media.

8. Frequently Asked Questions (FAQs)

Q1: What is a Tri-Clover Divert Valve used for?

A1: It is used to divert or route flow between two or three different process lines in hygienic systems such as food, pharma, and beverage.

Q2: Are these valves suitable for CIP (Clean-in-Place) applications?

A2: Yes, Tri-Clover Divert Valves are designed with hygienic finishes and materials suitable for CIP and SIP processes.

Q3: Do you provide pneumatic and electric actuator options?

A3: Yes, we offer manual, pneumatic, and electric actuation options to fit different automation requirements.

Q4: Can Riddhi Siddhi Impex supply these valves across India?

A4: Yes, we supply to all major and minor industrial cities across India including Mumbai, Delhi, Bengaluru, Hyderabad, Chennai, Surat, Ahmedabad, and many more.
